LED28 ceiling & wall
specification

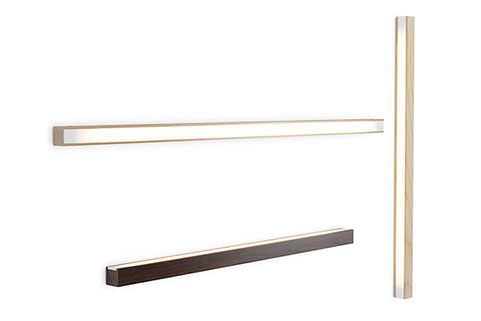

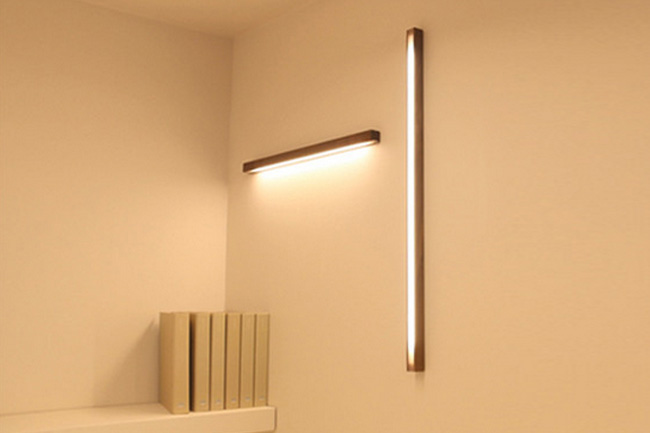

The LED28 lights give an ideal, minimalistic yet powerful impression when installed in groups of two or more. Stylish, highly modular and available in various lengths, opening up endless possibilities for creative use.
Handmade with certified sustainable wood in Finland.
Available in natural Walnut, Oak and Ash.
Size: H28 x W28 x L600/800/1000/1200mm
Power: 12-25W
Voltage: 180-295V 50/60Hz
Output: 15-35V / 700mA
Kelvin: 2700k, 3000k (standard) & 4000k
Lumen:
600mm - 650lm
800mm - 850lm
1000mm - 1000lm
1200mm - 1200lm
CRI: 85 typ
The product is for indoor use and has a non-user replaceable light source
Driver: standard is DALI, PUSH DIM dimmable driver
Casambi DIM: with CASAMBI, the lighting can be controlled via smartphones, tablets, smart watches, push buttons, switches or CASAMBI's wireless wall switch
Power box: white ceiling cup 220x100x35mm RAL 9003 fine effect
Cord length: 2m transparent power cable and thin steel wires for hanger assembly, 20m on request
Classification: IP20
IEC protection: class II
Energy efficiency: class A++
CE marking
Surface finish:
Ash - white oil wax
Oak & Walnut - oil wax
