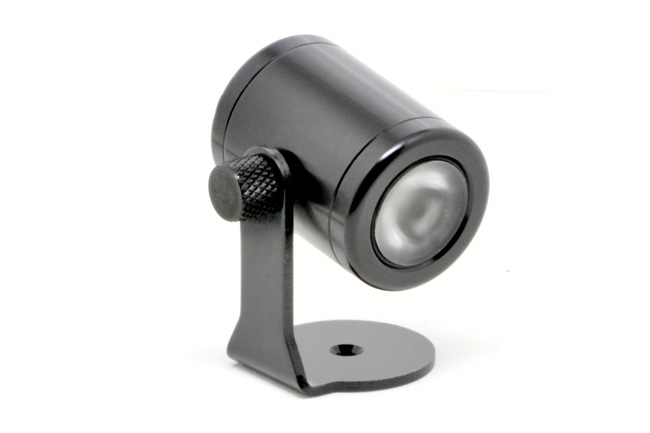

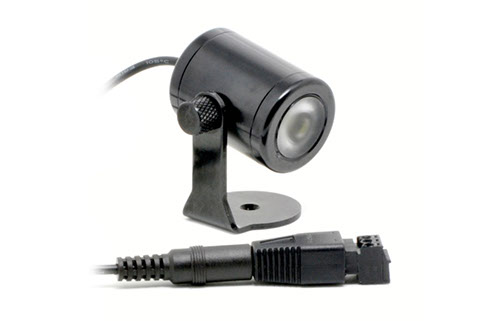

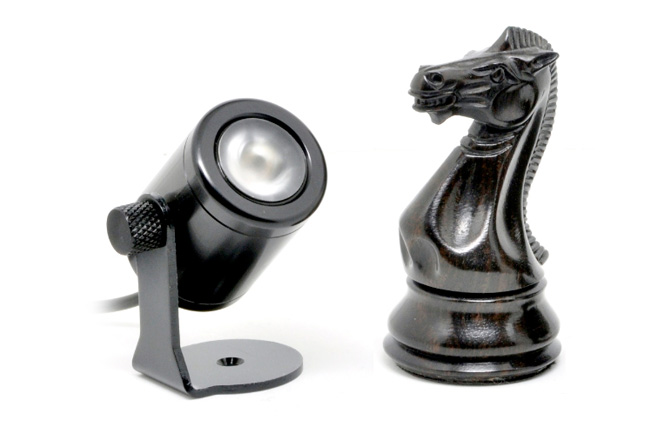

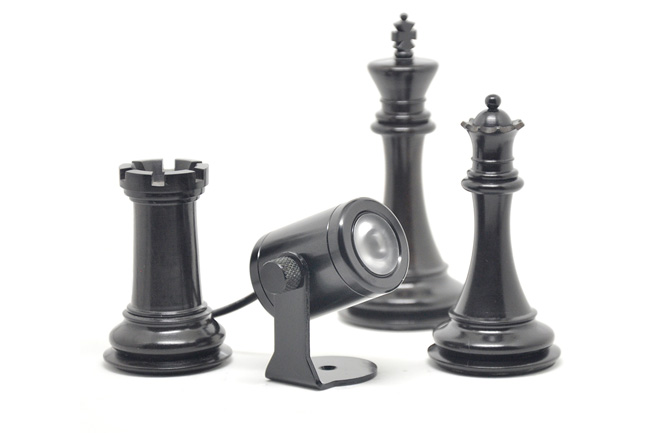

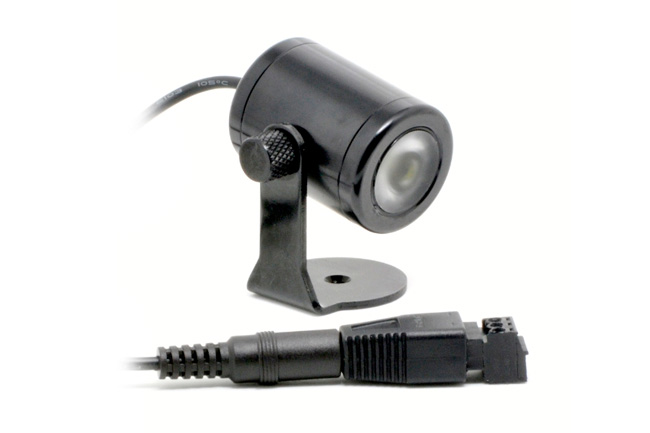

The 1W Precision Z Floodlight produces a soft point-source light equivalent to traditional 20W halogen fixtures in a highly energy and space efficient package.The fixture’s modular design allows it to be swapped with other fixtures without the hassle of cutting wires, allowing for fast design changes and reconfiguration.The industrial machined aluminium chassis gives the Precision Z an elegant form yet functions as a rugged shell and heat sink to protect the LED and core electronics even in outdoor and underwater applications.Internal driver circuitry ensures constant output over a wide range of input voltage and extends the fixture life beyond 50,000 hours.- Perfect for space constrained applications- Available in 6 colours: red, green, blue, amber, cool white, and warm white- 1W LED with 95% energy savings compared to 20W halogen lamp- Low voltage and minimal heat for improved safety over incandescent sources- Internal constant current driver gives highly efficient and consistent output- Dimmable using PWM power input from external constant voltage dimmer (10-100%)- Easy installation and reconfiguration- Dual polarity input- Minimal maintenance required with over 50,000 hour lamp life- Indoor and outdoor use- Perfect solution for dark rides, halloween attractions, bars, nightclubs, casinos, museums displays, theatre and stage accent lighting, mobile displays, retail spaces, architectural accent lighting, machineryMax wattage: 1.5WInput voltage: 9-15VDC (12VDC nominal)Current draw: 125mA @ 12VDCPower supply: for use with class 2 transformer or batteryBeam angle: 62°Field angle: 84°Ingress protection: IP68-3ftMaterial: Anodised aluminiumLED: Edison ACertifications: UL and CEPower connector: 2.1mm DC jack with screw terminal adapter standard. Outdoor rated and specialty connectors available.
