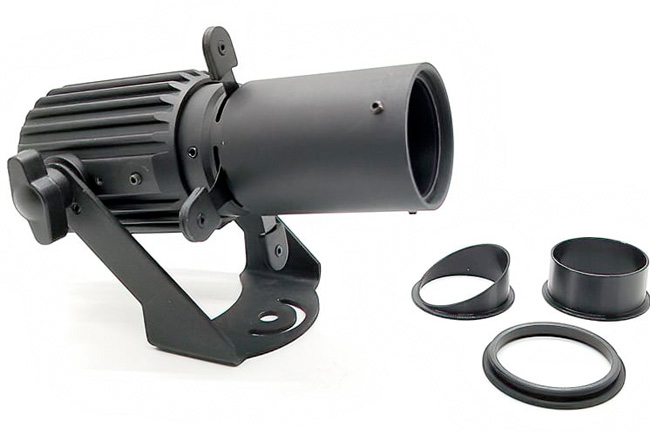

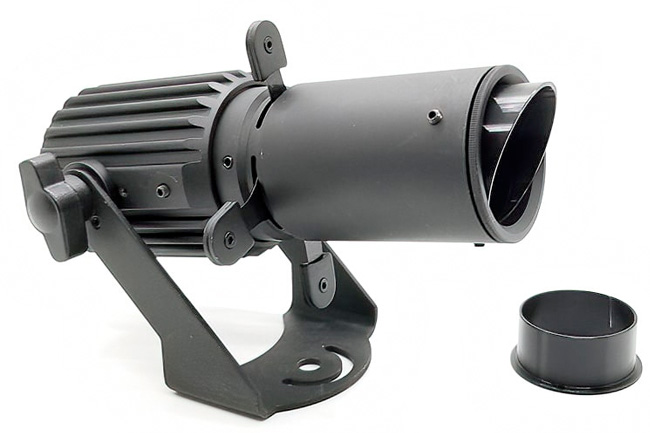

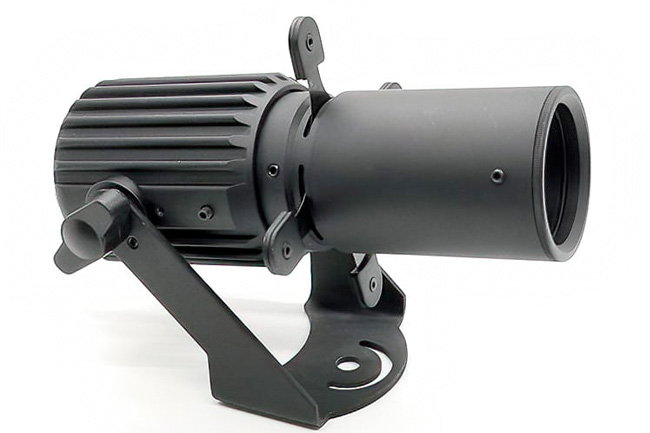

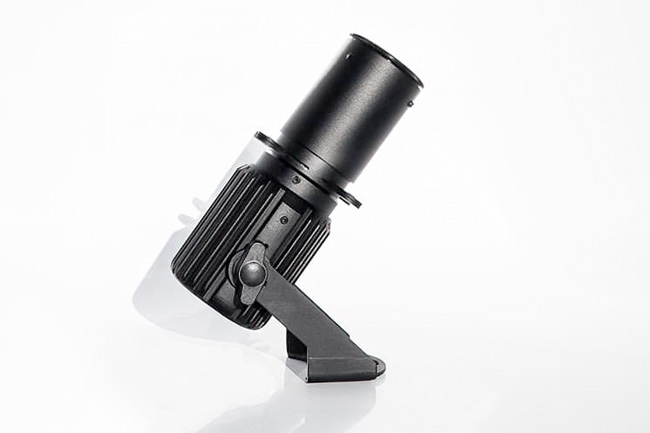

Gantom Juni Micro Framing Projectorspecification At less than 130mm (5 inches) in length, Juni is the smallest framing projector on the market. Gantom collaborated with top lighting designers in themed entertainment and architecture to create the most precise lighting tool for space-constrained environments. With zoom optics and multiple mounting configurations, Juni provides specifiers with design flexibility in a wide range of applications. For permanent installations, every adjustable mechanism is fully lockable (including shutters) to assure fixture focus when the designer steps away.  All this in a fixture that’s smaller than your smartphone!Juni has a matt black anodised aluminium finish with silver available by custom quotation. Juni is available in 12VDC PWM or DMX (see Juni DMX) dimming options. There are 3 available mounting options: standard screw-mount yoke, recessed canopy, and track.

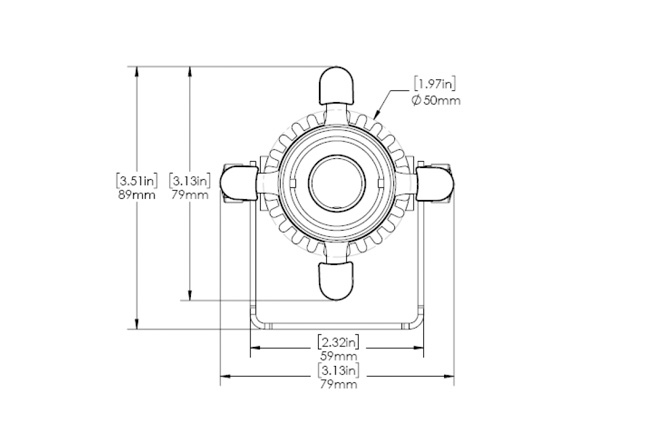

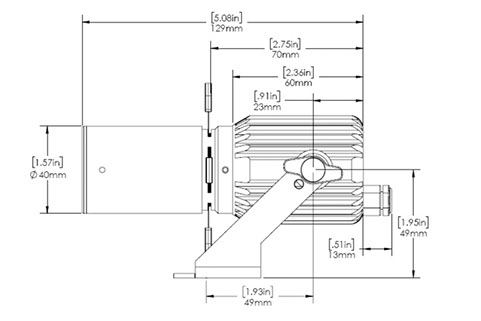

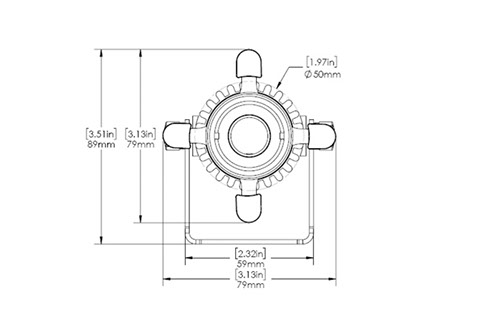

  • Ultra compact design <130mm (5 inches) long
  • Class 2, low voltage 12VDC input (DO NOT HOT PLUG)
  • Adjustable zoom and focus lenses

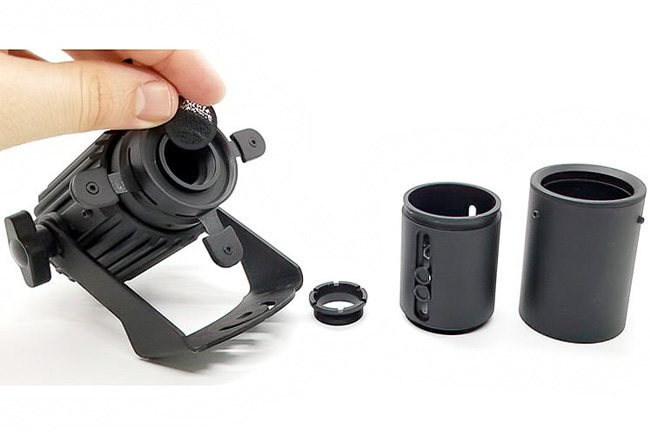

  • Interchangable lens tubes with a beam angle range of either 25-38° or 42-60°
  • 3000K 90CRI or 6000K LED options available
  • Locking tri-plane shutter system

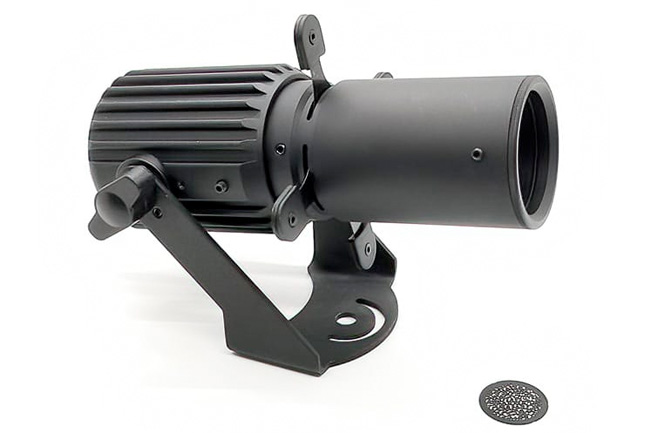

  • Accepts 19mm steel or glass gobo (up to 2mm thick)
  • PWM dimming and DMX dimming options
  • Machined aluminium body in black anodised finish, custom colours available

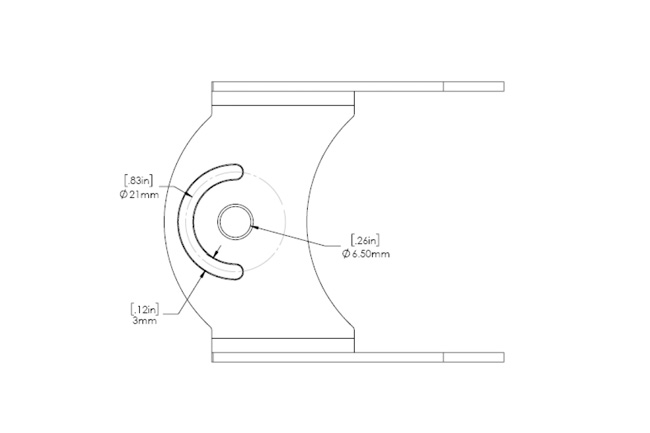

  • Track adapter and canopy mount available
The perfect solution for themed entertainment, dark rides, restaurants, museums, retail, theatre and stage, hotels, lobbies and public spaces plus trade shows.
